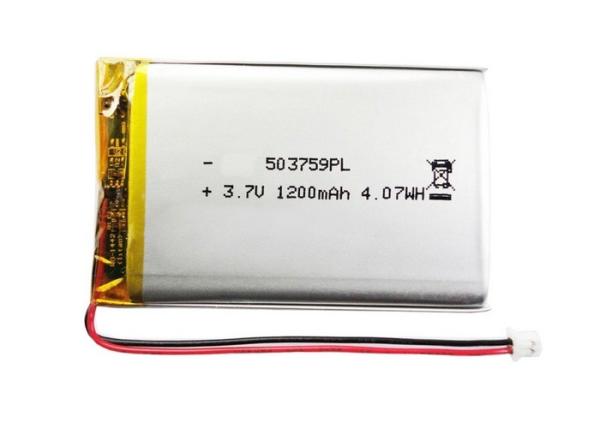

Custom Lithium Battery 503759 1200mAh 3.7V Lithium Polymer Battery Pack
Lipo battery Specification:
| Product Model |
503759 1200mAh 3.7V lipo battery pack |
| Battery Type |
Rechargeable lithium battery |
| Power : |
4.44Wh |
|
| Configuration |
1cell/ 1S1P |
|
| Standard Capacity |
1200 mAh |
@0.2C discharge |
| Nominal Voltage |
3.7 V |
|
| Charge Voltage |
4.2±0.12 V |
|
| Discharge end Voltage |
3.0 V |
|
| Standard charge Current |
600 mA |
@0.5C charge |
| Max. charge current |
1200 mA |
@1C charge |
| Standard Discharge Current |
600 mA |
@0.5C discharge |
| Max. Discharge Current |
1200 mA |
@1C discharge |
| Resistance |
＜100 mΩ |
|
| Cycle Life: |
500 times deep cycle |
|
| Weight (Approx.) |
22 g |
|
| Dimensions(T.W.L.) |
5.0*37*59 (mm) |
|
| Charge Temperature |
0 ~ 45℃ |
|
| Discharge Temperature |
-10 ~ 60℃ |
|
| Storage Temperature |
-10~40℃ |
Less than one month |
| 10~30℃ |
More than one month |
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Advantages:
1. Capacity, resistance, voltage, platform time consistency is super good.
2. With short-circuit function, safe and reliable.
3. Factory price& High quality.
4. Good consistency, low self discharge.
5. Light weight, small and customized size.
6. Wide application for electronics and industry.
Main application:
Lithium polymer battery widely used for Wireless transmitter, Wireless receiver, power driven tools & toy, camcorder, digital camera, head set stereo,GPS, Portable DVD, PDA,earphone, blue tooth device,notebook,MP3 ,MP4 player, Medical devices battery,handy terminal, mini disc player etc.
